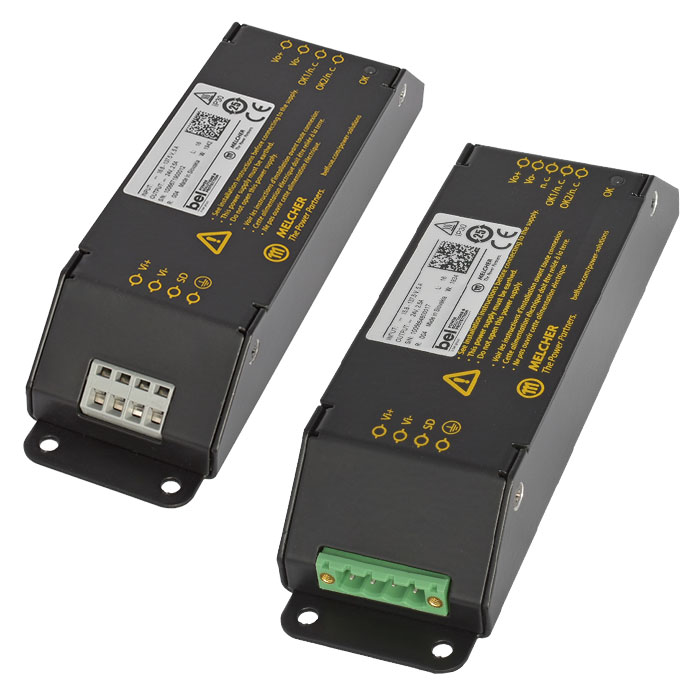

RCM60 Series

The RCM Series converters are reliable power supplies for railway and transportation systems. The input voltage ranges covering all common battery voltages from 12 to 110 V. The output delivers 60 W at 12, 15 or 24 V. The converters are designed for chassis mounting and exhibit a closed housing. Many options are available, such as an output Active ORing for a redundant operation, Input fuse and Voltage Monitoringing (solid state relay contact).
Features
  • Ultra-wide input voltage range
  • Single output voltage
  • Low inrush current
  • Primary shutdown input
  • Conformal coated PCB
  • Extremely high efficiency and high power density
  • RoHS Compliant
Specifications
  • Power (W): 60
  • Input Voltage Range (VDC): 8 ~ 137.5
  • Output Voltage (VDC): 12 ~ 24
  • Operating Temperature Range (ºC): -40 ~ +70
  • Isolated: Yes
  • Safety Standards: 62368
  • Safety Approvals: CB, CE, CSA
  • RoHS Compliant: Yes
