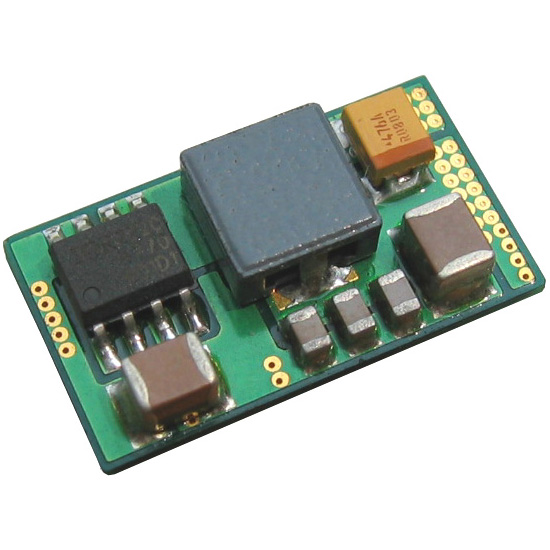

SRBA-06A1A Series

Share

The Bel SRBA-06A1Ax modules are a series of non-isolated dc/dc converters that deliver up to 6 A of output current with full load efficiency of 92% at 5.0 Vdc output. These modules pro Vide precisely regulated Voltage programmable via external resistor from 0.75 Vdc to 5.0 Vdc over a wide range of input voltage (8.3 Vdc - 14 Vdc). The open-frame construction and small footprint enable designers to develop cost and space-efficient solutions. Standard features include remote On/Off, over current protection, short current protection, wide input, and programmable output voltage.

Specifications

  • Input Voltage: 8.3 - 14 VDC
  • Output Voltage: 0.75 - 5.0 VDC
  • Power: 30 W
  • Size: 0.8 x 0.45 x 0.251 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Non-Isolated

Features

  • Output Voltage Trim
  • Single
  • Type input Voltage: 12 V

Datasheets and Drawings

Email Form

The Bel SRBA-06A1Ax modules are a series of non-isolated dc/dc converters that deliver up to 6 A of output current with full load efficiency of 92% at 5.0 Vdc output. These modules pro Vide precisely regulated Voltage programmable via external resistor from 0.75 Vdc to 5.0 Vdc over a wide range of input voltage (8.3 Vdc - 14 Vdc). The open-frame construction and small footprint enable designers to develop cost and space-efficient solutions. Standard features include remote On/Off, over current protection, short current protection, wide input, and programmable output voltage.

Specifications

  • Input Voltage: 8.3 - 14 VDC
  • Output Voltage: 0.75 - 5.0 VDC
  • Power: 30 W
  • Size: 0.8 x 0.45 x 0.251 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Non-Isolated

Features

  • Output Voltage Trim
  • Single
  • Type input Voltage: 12 V
