0RQB-C2Q12 Series

Share

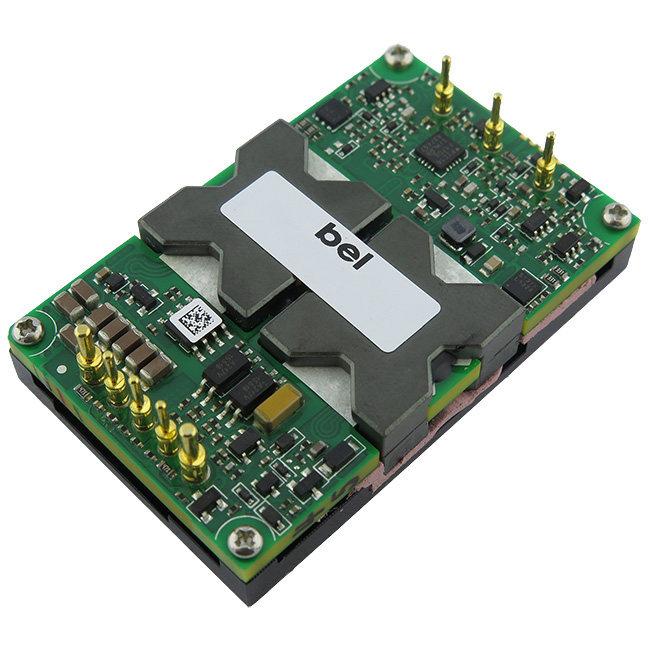

The 0RQB-C2Q12x is an isolated dc/dc converter that operates from a nominal 24 Vdc source. This unit will provide up to 156 W of output power from a nominal 24 Vdc input. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection and overvoltage protection. The converter is provided in an industry standard quarter brick package

Specifications

  • Input Voltage: 9 - 36 VDC
  • Output Voltage: 12.0 VDC
  • Power: 156.0 W
  • Size: 2.3 x 1.45 x 0.5 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Isolated

Features

  • Output Voltage Trim
  • Remote Sense
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 12/24 V

Datasheets and Drawings

Email Form

The 0RQB-C2Q12x is an isolated dc/dc converter that operates from a nominal 24 Vdc source. This unit will provide up to 156 W of output power from a nominal 24 Vdc input. This unit is designed to be highly efficient and low cost. Features include remote on/off, over current protection and overvoltage protection. The converter is provided in an industry standard quarter brick package

Specifications

  • Input Voltage: 9 - 36 VDC
  • Output Voltage: 12.0 VDC
  • Power: 156.0 W
  • Size: 2.3 x 1.45 x 0.5 Inches
  • Ambient Temperature: -40 to 85 ºC
  • Isolated

Features

  • Output Voltage Trim
  • Remote Sense
  • I/O Isolation Voltage: 1500 V
  • Single
  • Type input Voltage: 12/24 V
