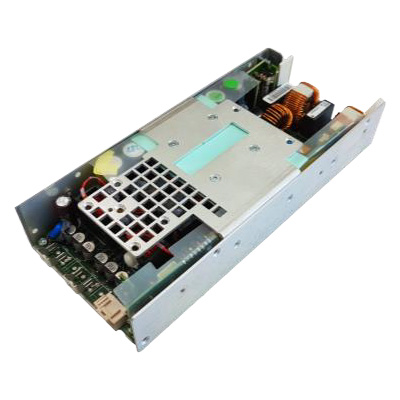

MBC1200/MBE1200

Share

The MBC1200 / MBE1200 Series of AC-DC power supplies provides up to 1200 W of regulated output power through wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The MBC1200 / MBE1200 Series is available in three compact 1U height compatible packages offering 12 and 5 VSB standby outputs and a full set of protection features. The MBC1200 / MBE1200 Series complies with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC, MoOP, 85 - 264 VAC, MoPP)
  • 1200 W rated power
  • High efficiency up to 94%
  • 24, 48 VDC standard output voltages
  • Stand by +12 V, 0.5 A and auxiliary 5 V, 1 A outputs

Features

  • Remote On / Off signal
  • Low earth / touch leakage current
  • Fan speed control function
  • Power Management Bus communication protocol supported
  • Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
  • IEC 60601-1-2 4th edition EMC compliant
  • Medical safety approval to IEC 60601-1 3rd edition, 2x MoPP rated and BF appliances compatible

Email Form

The MBC1200 / MBE1200 Series of AC-DC power supplies provides up to 1200 W of regulated output power through wide input voltage range 85 - 305 VAC in a single output of 24 VDC or 48 VDC. The MBC1200 / MBE1200 Series is available in three compact 1U height compatible packages offering 12 and 5 VSB standby outputs and a full set of protection features. The MBC1200 / MBE1200 Series complies with the latest edition of the IEC/EN 60601-1 safety standards for medical equipment requiring 2x MoPP protection grade and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC, MoOP, 85 - 264 VAC, MoPP)
  • 1200 W rated power
  • High efficiency up to 94%
  • 24, 48 VDC standard output voltages
  • Stand by +12 V, 0.5 A and auxiliary 5 V, 1 A outputs

Features

  • Remote On / Off signal
  • Low earth / touch leakage current
  • Fan speed control function
  • Power Management Bus communication protocol supported
  • Built-in current sharing and OR-ing for parallel operation and N+1 redundancy
  • IEC 60601-1-2 4th edition EMC compliant
  • Medical safety approval to IEC 60601-1 3rd edition, 2x MoPP rated and BF appliances compatible

Email Form
