ABC601
ABC601

DATASHEET


ABC601

Share

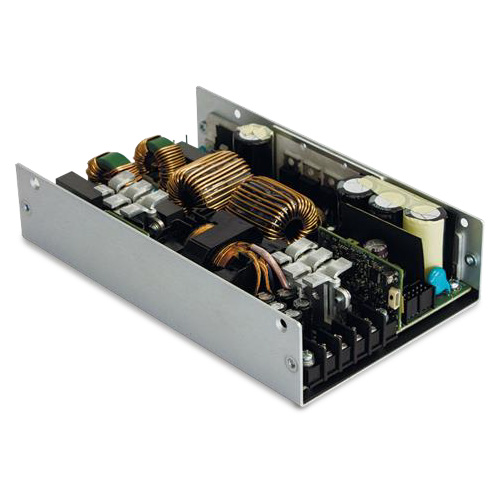

The ABC601 Series of industrial and medical AC-DC power supplies provides up to 600 W of regulated output power through wide input voltage range 85 - 305 VAC in single outputs of 24, 28, 36 or 48 VDC. The ABC601 Series comes in two packages, U-frame chassis or enclosed with a front mounted fan, offering 12 and 5 VSB standby outputs and a full set of protection features. The ABC601 Series complies with the latest international safety standards for IT and medical equipment and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC)
  • 600 W rated power (800 W peak)
  • High efficiency up to 94%
  • 24, 28, 36, 48 VDC standard output voltages
  • Stand by +5 V, 1.5 A and auxiliary / fan 12 V, 1 A outputs

Features

  • Remote On / Off signal
  • Low earth / touch leakage current
  • Fan speed control circuit
  • IT approval to IEC/EN 62368-1
  • LED lighting approval to UL 8750
  • Medical safety approval to IEC 60601-1, 2x MoPP protection grade BF appliances compatible

Datasheets and Drawings

Data Sheet ABC601 Datasheet

Technical Documents

inst-instrc ABC601 Installation Instruction

Email Form

SPECIFICATIONS

The ABC601 Series of industrial and medical AC-DC power supplies provides up to 600 W of regulated output power through wide input voltage range 85 - 305 VAC in single outputs of 24, 28, 36 or 48 VDC. The ABC601 Series comes in two packages, U-frame chassis or enclosed with a front mounted fan, offering 12 and 5 VSB standby outputs and a full set of protection features. The ABC601 Series complies with the latest international safety standards for IT and medical equipment and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Universal input voltage range (85 - 305 VAC)
  • 600 W rated power (800 W peak)
  • High efficiency up to 94%
  • 24, 28, 36, 48 VDC standard output voltages
  • Stand by +5 V, 1.5 A and auxiliary / fan 12 V, 1 A outputs

Features

  • Remote On / Off signal
  • Low earth / touch leakage current
  • Fan speed control circuit
  • IT approval to IEC/EN 62368-1
  • LED lighting approval to UL 8750
  • Medical safety approval to IEC 60601-1, 2x MoPP protection grade BF appliances compatible
