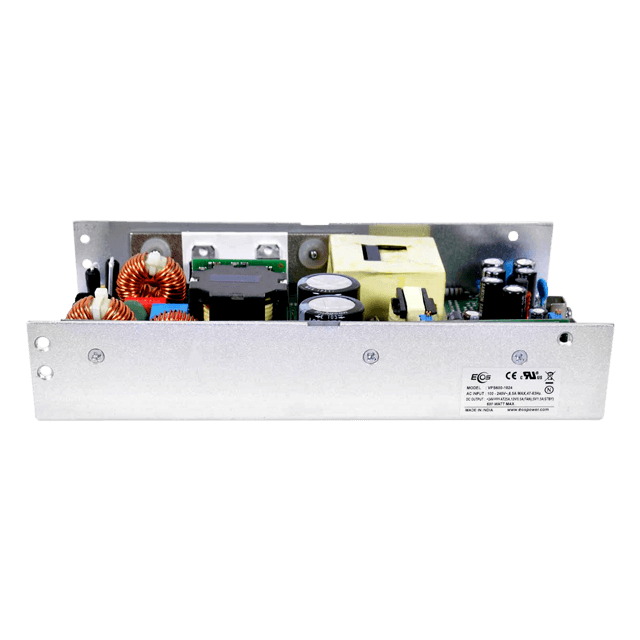

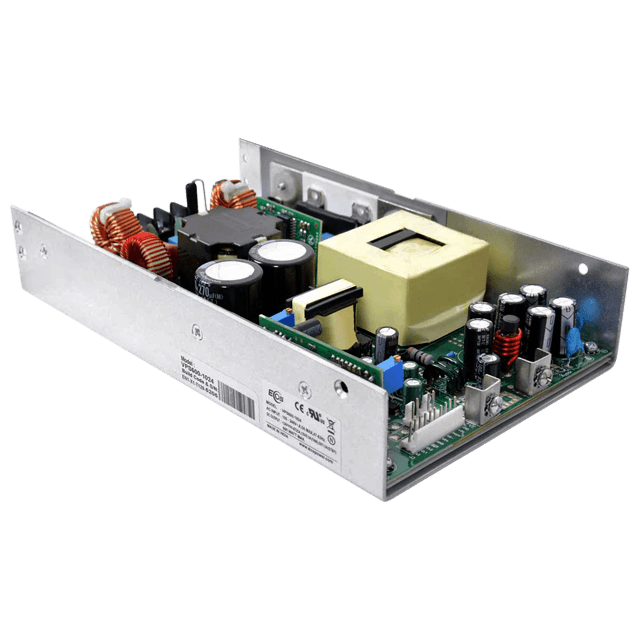

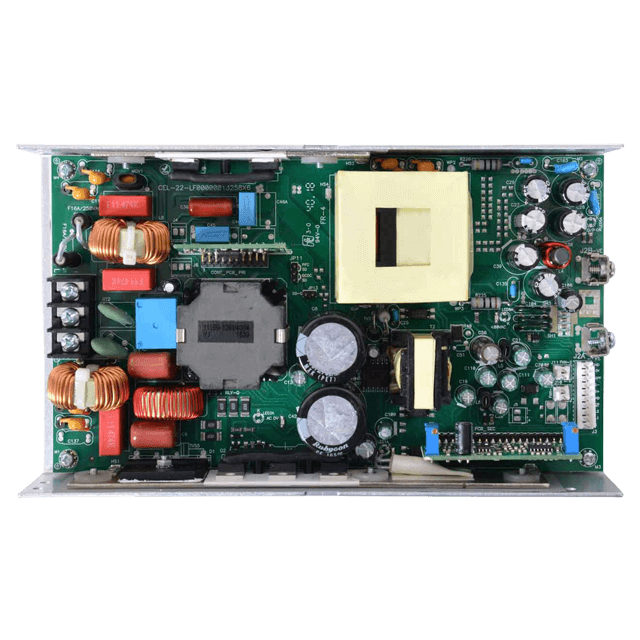

The EOS Power VPS600 Series of open frame power supplies feature a wide universal AC input range of 85 – 264 VAC, offering up to 600 W of output power with convection cooling (U-Channel), in a compact footprint, with a variety of single output voltages. The high efficiency and high power density of the VPS600 series ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products. These power supplies are ideal for medical, telecom, datacom, industrial equipment and other applications.

Specifications

  • 600 W Output Power
  • 85 – 264 VAC Input Voltage Range
  • 5 x 8.5 x 1.61 Inch Form Factor
  • 5 V Stand by Provision

Features

  • Convection Cooling Rated
  • Universal Input
  • Current Sharing
  • Open Frame
  • Peak Power Capability

Datasheets and Drawings

Data Sheet VPS600 Datasheet

Email Form

SPECIFICATIONS

The EOS Power VPS600 Series of open frame power supplies feature a wide universal AC input range of 85 – 264 VAC, offering up to 600 W of output power with convection cooling (U-Channel), in a compact footprint, with a variety of single output voltages. The high efficiency and high power density of the VPS600 series ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products. These power supplies are ideal for medical, telecom, datacom, industrial equipment and other applications.

Specifications

  • 600 W Output Power
  • 85 – 264 VAC Input Voltage Range
  • 5 x 8.5 x 1.61 Inch Form Factor
  • 5 V Stand by Provision

Features

  • Convection Cooling Rated
  • Universal Input
  • Current Sharing
  • Open Frame
  • Peak Power Capability
