TET4000 (AC-DC/HVDC)

Share

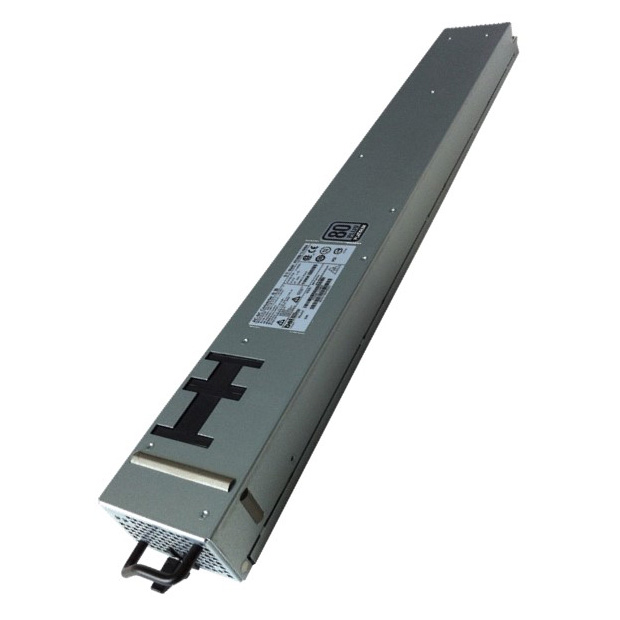

Bel Power Solutions TET4000-48-069RA is a 4000 Watt AC/DC powerfactor- corrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 48 VDC (42-58 VDC) for supplying 48 VDC power distribution in high performance and reliability data center equipment, servers, routers, and network switches. The TET4000-48-069RA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Best-in-class efficiency of up to 98%
  • Full power available at 200-277 VAC or 192-400 VDC
  • 4000 W main output with programmable voltage set-point of 42-58 VDC
  • Optional Standby output 12 VDC / 60 W
  • Small form factor: 69 x 40.5 x 530 mm
  • RoHS Compliant

Features

  • Full digital controls for improved performance
  • CAN communication interface for monitoring, control, and firmware update via bootloader
  • Overtemperature, output overvoltage and overcurrent protection
  • 2 Status LEDs: AC OK and DC OK with fault signaling
  • Safety-approved to IEC/EN 60950-1 and UL/CSA 60950-1 2nd ed.

Datasheets and Drawings

Email Form

Bel Power Solutions TET4000-48-069RA is a 4000 Watt AC/DC powerfactor- corrected (PFC) and DC-DC power supply that converts standard AC mains power or high voltage DC bus voltages into a main output of 48 VDC (42-58 VDC) for supplying 48 VDC power distribution in high performance and reliability data center equipment, servers, routers, and network switches. The TET4000-48-069RA meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • Best-in-class efficiency of up to 98%
  • Full power available at 200-277 VAC or 192-400 VDC
  • 4000 W main output with programmable voltage set-point of 42-58 VDC
  • Optional Standby output 12 VDC / 60 W
  • Small form factor: 69 x 40.5 x 530 mm
  • RoHS Compliant

Features

  • Full digital controls for improved performance
  • CAN communication interface for monitoring, control, and firmware update via bootloader
  • Overtemperature, output overvoltage and overcurrent protection
  • 2 Status LEDs: AC OK and DC OK with fault signaling
  • Safety-approved to IEC/EN 60950-1 and UL/CSA 60950-1 2nd ed.
