PES1600 (AC-DC/HVDC)
PES1600 (AC-DC/HVDC)

DATASHEET


PES1600 (AC-DC/HVDC)

Share

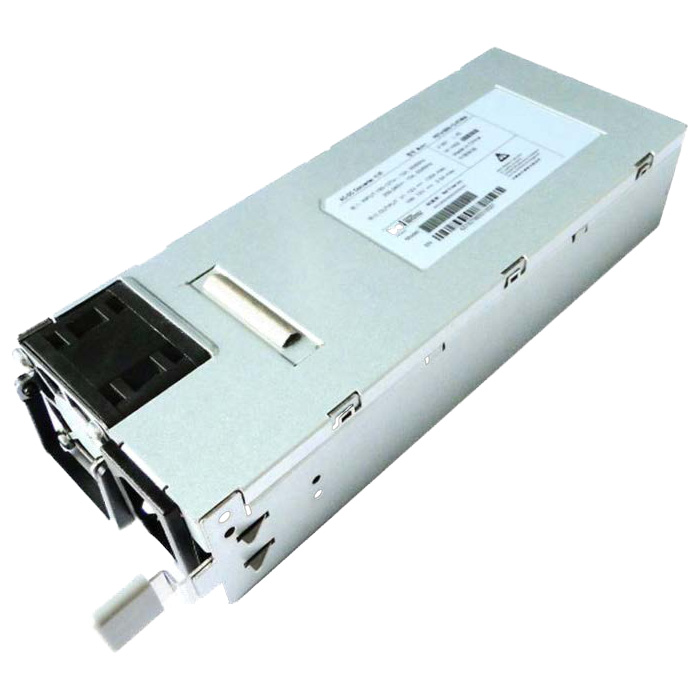

The PES1600-12-080NA is a 1600 Watt AC to DC, power-factor corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PES1600-12-080NA utilizes full digital control architecture for greater efficiency, control, and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • 1600 W continuous output power capability
  • Best-in-class, meet 80 plus Platinum efficiency
  • Auto-selected input voltage ranges: 90-140 VAC, 180-264 VAC
  • Always-on 12 VSB / 3.5 A standby output
  • Small form factor: 80 x 40 x 195 in mm

Features

  • Designed to meet Intel CRPS compatibility
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • Power Management Bus communication interface for control, programming and monitoring

Datasheets and Drawings

Data Sheet PES1600 (AC-DC/HVDC) Datasheet

Email Form

SPECIFICATIONS

The PES1600-12-080NA is a 1600 Watt AC to DC, power-factor corrected (PFC) power supply that converts standard AC power into a main output of +12 VDC for powering intermediate bus architectures (IBA) in high performance and reliability servers, routers, and network switches. The PES1600-12-080NA utilizes full digital control architecture for greater efficiency, control, and functionality. This power supply meets international safety standards and displays the CE-Mark for the European Low Voltage Directive (LVD).

Specifications

  • 1600 W continuous output power capability
  • Best-in-class, meet 80 plus Platinum efficiency
  • Auto-selected input voltage ranges: 90-140 VAC, 180-264 VAC
  • Always-on 12 VSB / 3.5 A standby output
  • Small form factor: 80 x 40 x 195 in mm

Features

  • Designed to meet Intel CRPS compatibility
  • Hot-plug capable
  • Parallel operation with active current sharing
  • Full digital controls for improved performance
  • Power Management Bus communication interface for control, programming and monitoring
