C2F Series

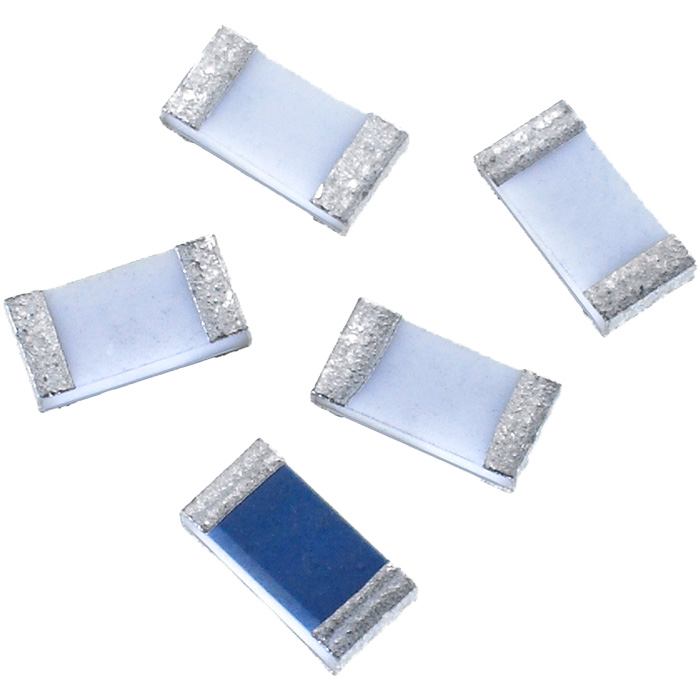

C2F Series is AEC-Q Compliant 0603 size surface mount fast acting chip fuse, with improved surge withstand performance. 32V AC/63V DC voltage rating, 500mA to 8A current rating, -55ºC to +125ºC operating temperature.
Features
  • Ceramic substrate, printed element construction
  • RoHS6 Compliant
  • Pb-Free
  • Halogen-Free
  • T&R, Auto-Insertable
Specifications
  • Fuse Type: Chip Fuse
  • Current (A): 0.5 ~ 8
  • Voltage (VDC): 63
  • Voltage (VAC): 32
  • Mounting Type: Surface Mount
  • Response Time: Fast Blow
  • Case Size: 603
  • AEC-Q200 Compliant: Yes
  • RoHS Compliant: Yes
