0ZRR Series
0ZRR Series

DATASHEET


0ZRR Series

Share

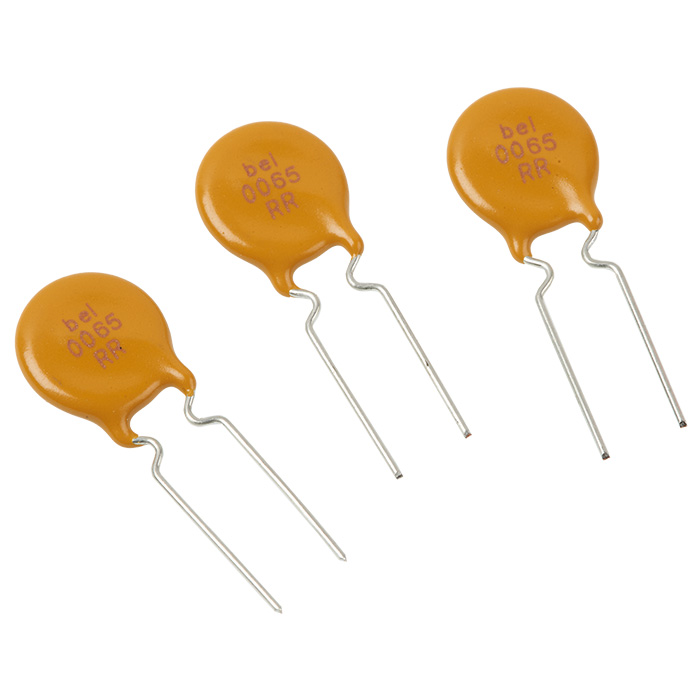

0ZRP Series is AEC-Q Compliant radial lead PTC resettable fuse with low hold current, solid state ideal for up to 60VDC. Maximum voltage 60V DC operating (hold current) range 0.05A - 3.75A max current 40A operating temperature -40ºC to 85ºC.

Specifications

  • AEC-Q Compliant
  • Operating Current: 50mA - 3.75A
  • Maximum Voltage: 60VDC
  • Maximum Current: 40A
  • Temperature Range: -40ºC to 85ºC

Features

  • Low hold current
  • Solid state
  • Radial leaded product
  • For wide variety of electronic equipment

Email Form

SPECIFICATIONS

0ZRP Series is AEC-Q Compliant radial lead PTC resettable fuse with low hold current, solid state ideal for up to 60VDC. Maximum voltage 60V DC operating (hold current) range 0.05A - 3.75A max current 40A operating temperature -40ºC to 85ºC.

Specifications

  • AEC-Q Compliant
  • Operating Current: 50mA - 3.75A
  • Maximum Voltage: 60VDC
  • Maximum Current: 40A
  • Temperature Range: -40ºC to 85ºC

Features

  • Low hold current
  • Solid state
  • Radial leaded product
  • For wide variety of electronic equipment
