0685P Series
0685P Series

DATASHEET


0685P Series

Share

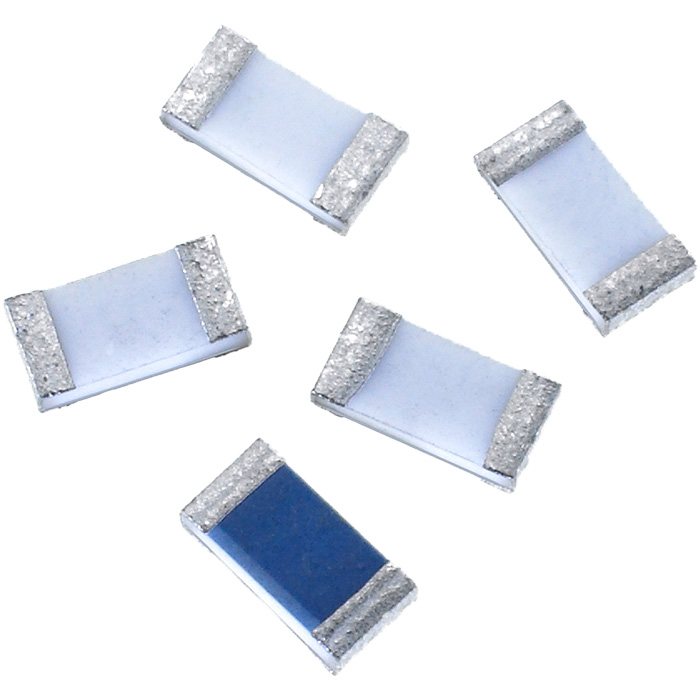

0685P Series is surface mount, small 1206 size, fast acting chip fuse with improved surge withstand performance. Maximum voltage 50V AC / 63V DC, current rating from 2A to 50A, operating temperature -55ºC to 125ºC.

Specifications

  • Current Rating: 2A to 50A
  • Voltage Rating: 50V AC / 63V DC
  • Size: 1206
  • Operating Temperature: -55°C to +125°C

Features

  • Surface Mount
  • AEC Q200 Compliant
  • RoHS 2 Compliant
  • Lead-Free
  • Halogen-Free
  • High I²t Ratings
  • High Surge Withstand
  • Suitable for both leaded and lead-free reflow/wave soldering

Email Form

SPECIFICATIONS

0685P Series is surface mount, small 1206 size, fast acting chip fuse with improved surge withstand performance. Maximum voltage 50V AC / 63V DC, current rating from 2A to 50A, operating temperature -55ºC to 125ºC.

Specifications

  • Current Rating: 2A to 50A
  • Voltage Rating: 50V AC / 63V DC
  • Size: 1206
  • Operating Temperature: -55°C to +125°C

Features

  • Surface Mount
  • AEC Q200 Compliant
  • RoHS 2 Compliant
  • Lead-Free
  • Halogen-Free
  • High I²t Ratings
  • High Surge Withstand
  • Suitable for both leaded and lead-free reflow/wave soldering
