0678D Series
0678D Series

DATASHEET


0678D Series

Share

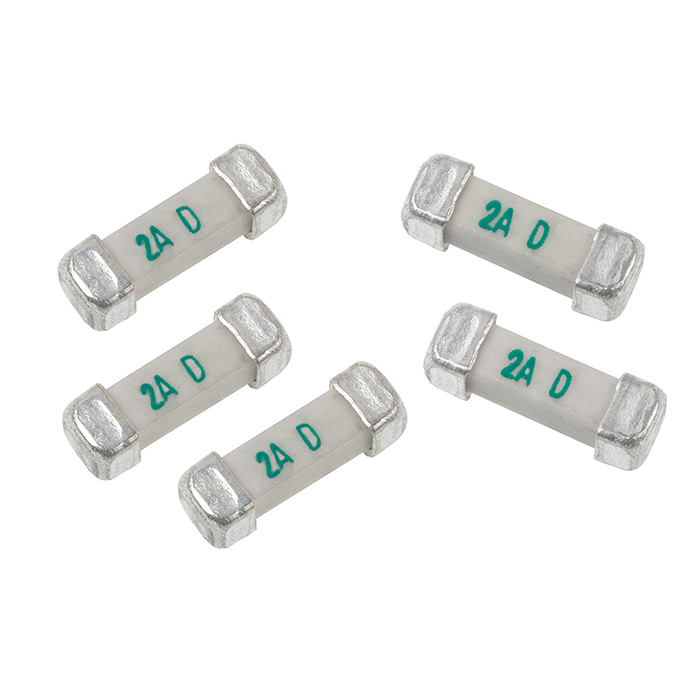

0678D Series is AEC-Q Compliant 3912 size square ceramic surface mount fast blow fuse. 350V AC/125V DC voltage rating, 500mA to 5A current rating, -55ºC to +125ºC operating temperature.

Specifications

  • AEC-Q Compliant
  • 350 VAC
  • 125 VDC
  • 100A Interrupting Rating AC
  • 2000A Interrupting Rating DC
  • Size: 3912 mm

Features

  • Surface Mount
  • High Voltage Ratings

Email Form

SPECIFICATIONS

0678D Series is AEC-Q Compliant 3912 size square ceramic surface mount fast blow fuse. 350V AC/125V DC voltage rating, 500mA to 5A current rating, -55ºC to +125ºC operating temperature.

Specifications

  • AEC-Q Compliant
  • 350 VAC
  • 125 VDC
  • 100A Interrupting Rating AC
  • 2000A Interrupting Rating DC
  • Size: 3912 mm

Features

  • Surface Mount
  • High Voltage Ratings
