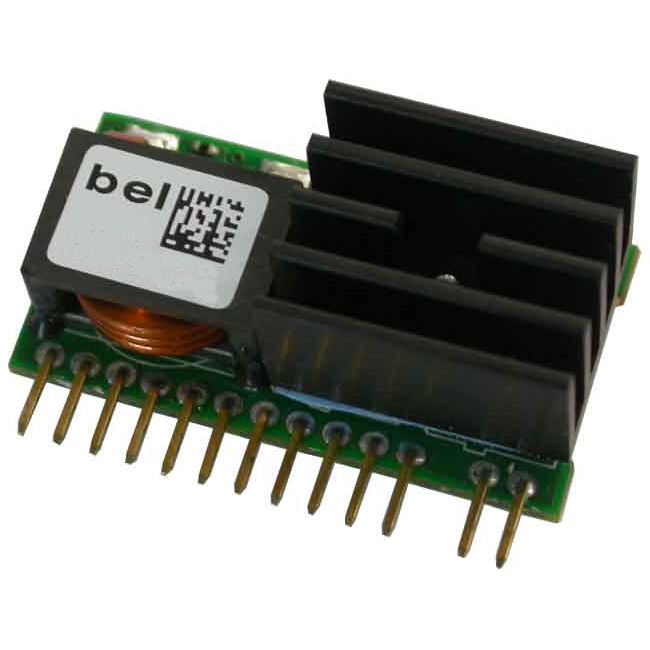

VRP1-30E1A0 DC-DC Converters
Non-Isolated DC-DC Converter | VR11.1 Compliant | Power 150W | Output 0.591-5.1VDC, 30A | Input 4.5-13.8VDC | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 150 |
| Input Voltage Range (VDC) | 4.5 ~ 13.8 |
| Output Voltage (VDC) | 0.591 ~ 5.1 |
| Output Current (A) | 30 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | 0 ~ +70 |
| Dimensions L x W x H (mm) | 30.48 x 15.49 x 18.03 |
| Dimensions L x W x H (in) | 1.2 x 0.61 x 0.71 |
| Mounting Type | Through Hole Mount |
| Market | ITE |
| Isolated | No |
| Active Logic | Active High |
| Orientation | Vertical |
| RoHS Compliant | Yes |
| Brand | Bel |
