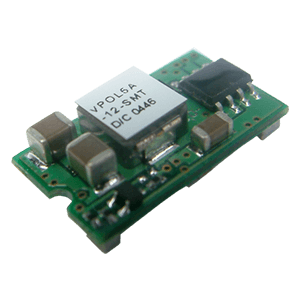

VPOL5A-12-SMT DC-DC Converters
5 A Output Current, 8.3~14 Vdc Input, SMT, Non-Isolated, Dc-Dc Converter
Stock Check
Country - USA
Features & Specifications
| Power (W) | 25 |
| Input Voltage Range (VDC) | 8.3 ~ 14 |
| Output Voltage (VDC) | 0.75 |
| Output Current (A) | 5 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 11.43 x 20.3 x 6.09 |
| Dimensions L x W x H (in) | 0.8 x 0.45 x 0.24 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | SMT8 |
| Market | ITE |
| Isolation (VDC) | 0 |
| Isolated | No |
| Regulation | Yes |
| RoHS Compliant | Yes |
| Brand | CUI |
