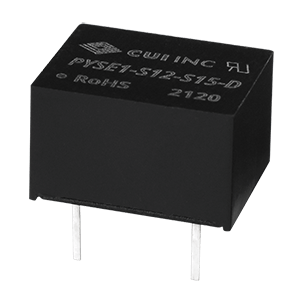

PYSE1-S24-S24-D DC-DC Converters
This product is Not Recommended for New Design (NRND) and availability is limited to remaining stock in distribution. Please contact tech support below with any questions.
Stock Check
Country - USA
Recommended Replacements for PYSE1-S24-S24-D
DRM1-24-D12-S
1 W DC-DC Converter, 12 VDC / -12 VDC, 0.042 A / -0.042 A Output, 21.6 ~ 26.4 VDC Input Range, Through Hole
View Product
VAWQ3-Q24-D12H
3 W DC-DC Converter, 12 VDC / -12 VDC, 0.125 A / -0.13 A Output, 9 ~ 36 VDC Input Range, Through Hole
View ProductFeatures & Specifications
| Power (W) | 1 |
| Input Voltage Range (VDC) | 21.6 ~ 26.4 |
| Output Voltage (VDC) | 24 |
| Output Current (A) | 0.042 |
| Number of Outputs | 1 |
| Dimensions L x W x H (mm) | 12.7 x 10.16 x 8.2 |
| Dimensions L x W x H (in) | 0.5 x 0.4 x 0.23 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | DIP7 |
| Options | Extended Temp Range |
| Isolation (VDC) | 1500 |
| Isolated | Yes |
| Safety Approvals | UL/cUL |
| Regulation | No |
| RoHS Compliant | Yes |
| Brand | CUI |
