SRBL-C0A1A Series
SRBL-C0A1A Series

SRBL-C0A1A Series

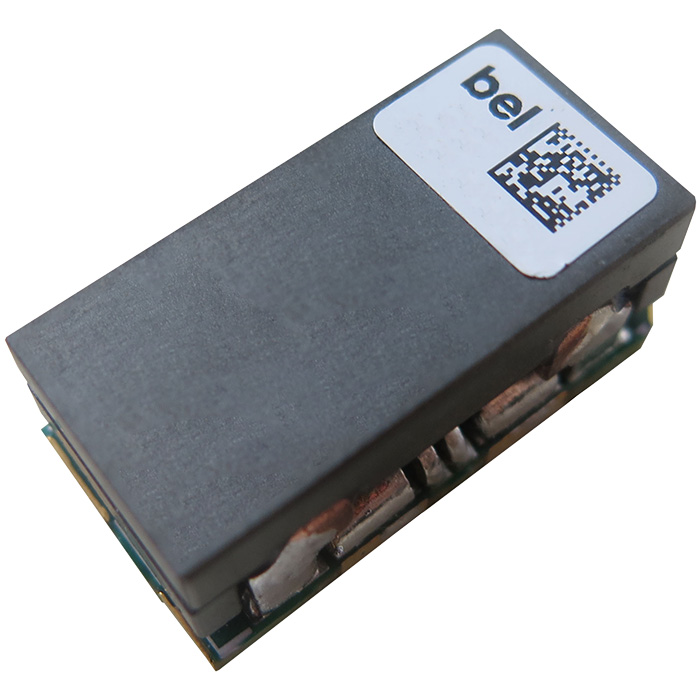

The Bel SRBL-C0A1A0 is a non-isolated DC-DC converter. Rated at 100 A maximum output current and 215 W maximum output power, this converter can provide output voltage ranging from 0.6 to 3.3 VDC with the operating input voltage varying from 7 VDC to 13.2 VDC. This converter contains two channels of power stage and can be configured to provide single output and dual outputs. The converter is available in a SMD package, along with small dimensions (1.00 x 0.50 x 0.48 inch), to make it less space-consuming.
Features
  • Non-Isolated
  • Low Cost
  • High Efficiency
  • High Power Density
  • Class 2, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
Specifications
  • Power (W): 215
  • Input Voltage Range (VDC): 7 ~ 13.2
  • Output Voltage (VDC): 0.6 ~ 3.3
  • Operating Temperature Range (ºC): -40 ~ +85
  • Isolation (VDC): 0
  • Isolated: No
  • Safety Approvals: UL
  • RoHS Compliant: Yes
