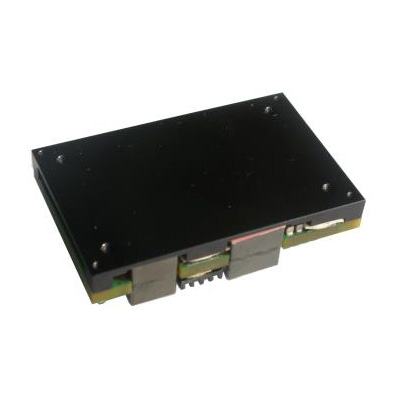

0RQB-H0S123 DC-DC Converters
Quarter-Brick DC-DC Converter | Power 600 W | Output 12 VDC, 53 A | Input 45 ~ 55 VDC | Active Low, with Baseplate | Through Hole Mount | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 600 |
| Input Voltage Range (VDC) | 45 ~ 55 |
| Output Voltage (VDC) | 12 |
| Output Current (A) | 53 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +85 |
| Dimensions L x W x H (mm) | 57.91 x 36.83 x 13.21 |
| Dimensions L x W x H (in) | 2.28 x 1.45 x 0.52 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Options | Baseplate |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, UL |
| RoHS Compliant | Yes |
| Brand | Bel |
