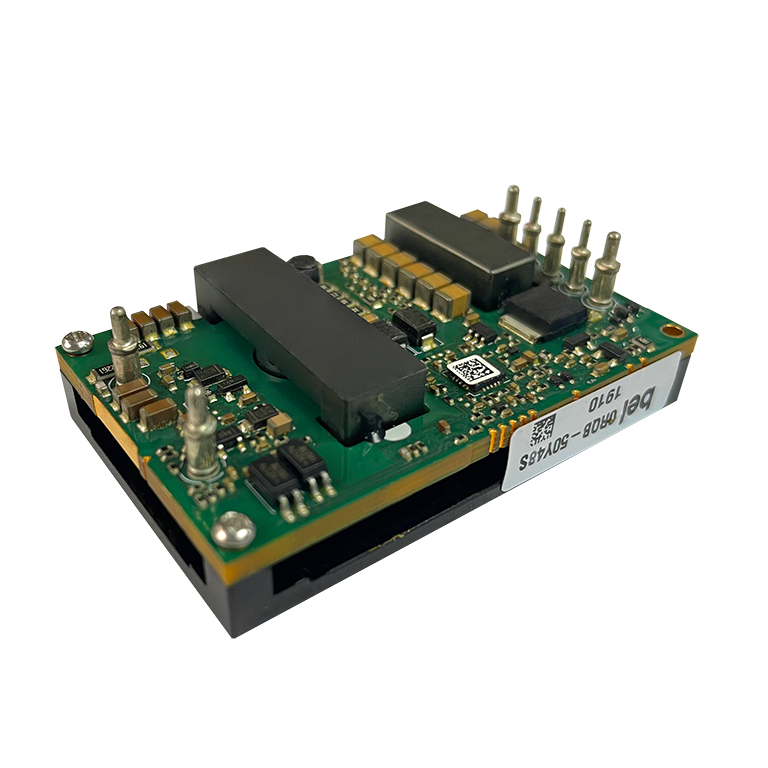

0RQB-50Y48FG DC-DC Converters
Rugged BMP DC-DC Converter | Power 50 W | Output 48 VDC, 1.04 A | Input 14.4 ~ 154 VDC| Active Low, with flange | RoHS Compliant
Stock Check
Country - USA
Features & Specifications
| Power (W) | 50 |
| Input Voltage Range (VDC) | 14.4 ~ 154 |
| Output Voltage (VDC) | 48 |
| Output Current (A) | 1.04 |
| Number of Outputs | 1 |
| Operating Temperature Range (ºC) | -40 ~ +105 |
| Dimensions L x W x H (mm) | 58.42 x 36.83 x 14.99 |
| Dimensions L x W x H (in) | 2.3 x 1.45 x 0.59 |
| Mounting Type | Through Hole Mount |
| Standard Footprint | 1/4 Brick |
| Market | ITE |
| Options | Flange |
| Isolated | Yes |
| Active Logic | Active Low |
| Safety Standards | 62368 |
| Safety Approvals | CB, CE, CSA, Nemko |
| RoHS Compliant | Yes |
| Brand | Bel |
