WLC550
WLC550

DATASHEET


WLC550

Share

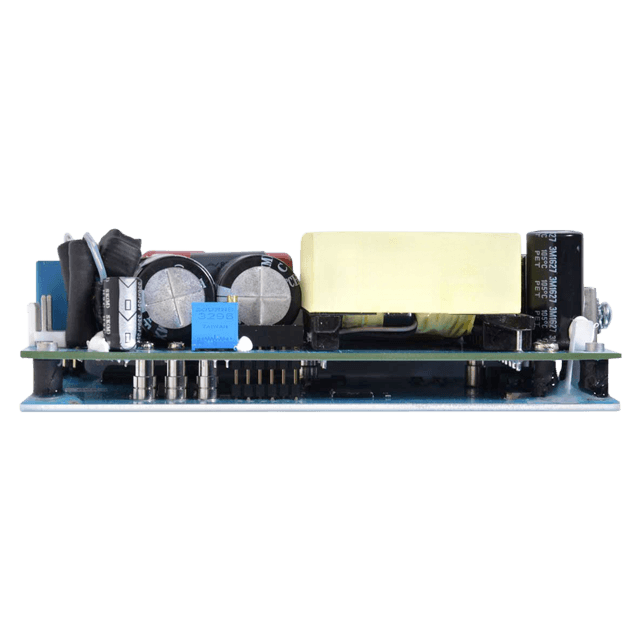

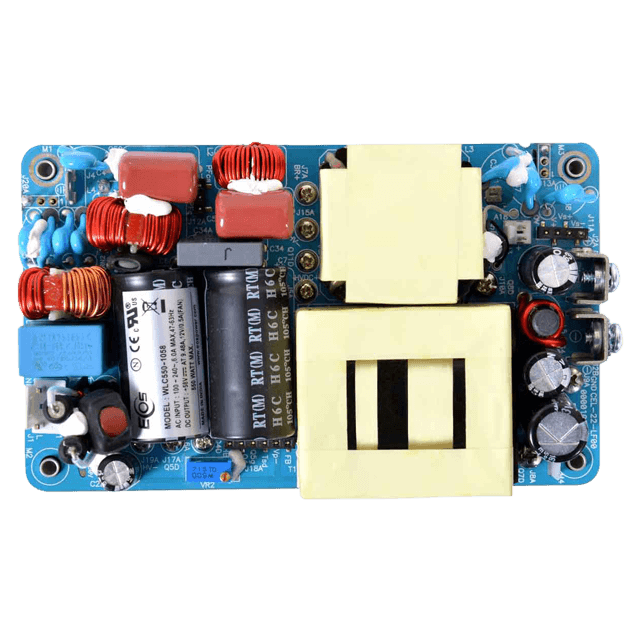

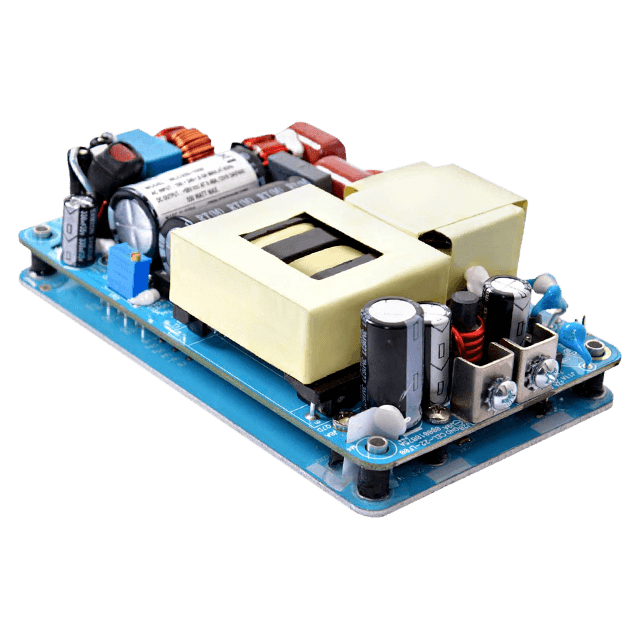

The EOS Power WLC550 Series of open frame power supplies feature a wide universal AC input range of 90 - 264 VAC, offering up to 550 W of output power with forced air cooling, or 250 W with conduction cooling in a compact footprint, with a variety of isolated single output voltages. The high efficiency and high power density of the WLC550 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products. These power supplies are ideal for medical, telecom, datacom, industrial equipment and other applications.

Specifications

  • 5 x 3 x 1.5 Inch Form Factor
  • Up to 550 Watts with Forced Air Cooling
  • Efficiencies up to 92%
  • -40 to 70ºC Operating Temperature
  • 12 V / 0.5 A Fan Output, Thermal Shut-Down Feature
  • Approval to EN60601 3rd Edition (Pending)

Features

  • RoHS Compliant
  • CE Marked

Datasheets and Drawings

Data Sheet WLC550 Datasheet

Email Form

SPECIFICATIONS

The EOS Power WLC550 Series of open frame power supplies feature a wide universal AC input range of 90 - 264 VAC, offering up to 550 W of output power with forced air cooling, or 250 W with conduction cooling in a compact footprint, with a variety of isolated single output voltages. The high efficiency and high power density of the WLC550 family ensures minimal power loss in end-use equipment, thereby facilitating higher reliability, easier thermal management and meets regulatory approvals for environmentally-friendly end products. These power supplies are ideal for medical, telecom, datacom, industrial equipment and other applications.

Specifications

  • 5 x 3 x 1.5 Inch Form Factor
  • Up to 550 Watts with Forced Air Cooling
  • Efficiencies up to 92%
  • -40 to 70ºC Operating Temperature
  • 12 V / 0.5 A Fan Output, Thermal Shut-Down Feature
  • Approval to EN60601 3rd Edition (Pending)

Features

  • RoHS Compliant
  • CE Marked
